Welded Mesh Fencing
Installed to the requirements of BS1722 pt 1 & 10
Procter Welded Mesh Fencing is installed to the requirements of BS1722 pt 1 & 10 and comes in a range of wire diameters from 2.5mm to 3.5mm, and in two mesh patterns – 50 x 50mm and 75 x 25mm.
Applications for weld mesh fencing include the perimeter fence, perimeter security, high security and sports, with typical examples being schools, factories, warehouses and distribution centres.

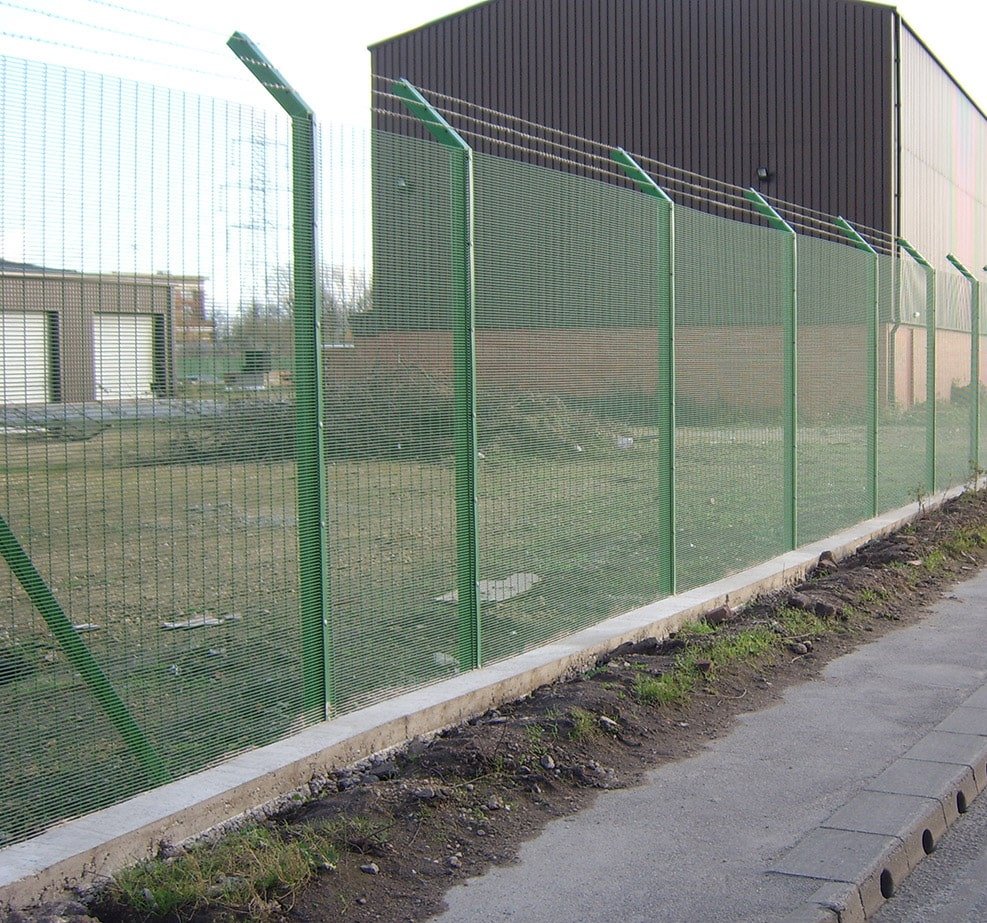

Posts for welded mesh fencing can either concrete or steel, with both being made in our factories at Garforth and Leeds. Concrete Posts are normally plain but can be offered in a coloured finish (typically green or brown) to blend more with the environment they are used in. Steel Posts are made from either RSA (Rolled Steel Angle iron) or SHS (Square Hollow Section).
Finish – Our welded mesh fencing can be hot-dip galvanised or plastic coated green or black to match the colour and finish as required, with a galvanised core wire.
Vertical or cranked post extensions are available for fences above 2.0m to carry barbed wire or razor wire for added security.
Applications
- Boundary demarcation
- Perimeter – low security
- Perimeter – medium security
- Schools
- Warehousing
- Industrial Units
Specifications
Wire Diameters: 2.5mm – 3.5mm
Post Options: Concrete/Steel
Mesh Patterns: 50mm x 50mm – 75mm
Height: 0.9m – 4.0m
Finish: Hot dip Galvanised to BS EN ISO 1461:2009 and polyester coated to a range of RAL colours
